mirainfosystem

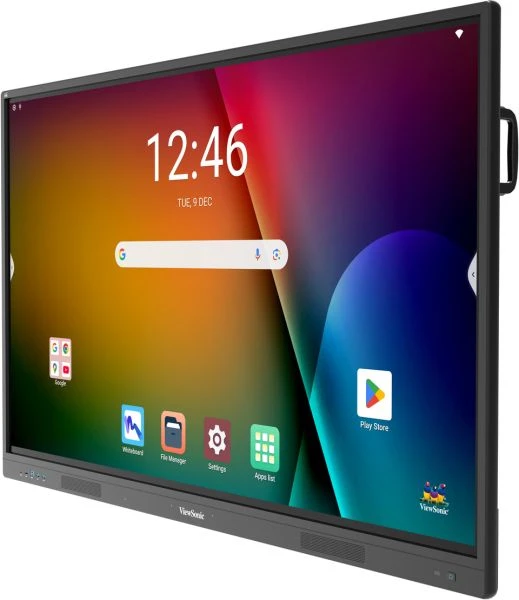

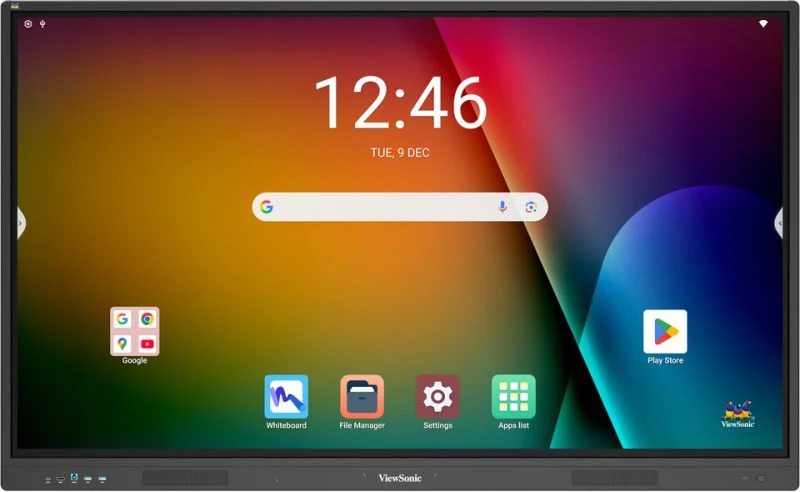

MIS-I7501

Elevate your teaching and collaboration with the MIS-I7501 Interactive Board by mirainfosystem.
Experience seamless multi-touch, crystal-clear 4K display, and Android 14 performance in a sleek, ultra-narrow design.
Enjoy wireless screen sharing, real-time collaboration, and smart classroom tools—all in one powerful, easy-to-use solution.

Download Brochure

* Price excludes taxes, shipping, installation, setup, service fees, and additional charges. Contact sales for a customized quote.

4K UHD Display

3840×2160 resolution, 16:9 aspect ratio, 1.07B colors, 350 nits, 178° wide view, anti-glare glass.

40-Point IR Touch

IR touch, 40-point (Windows), 20-point (Android), ±1mm accuracy, pen & finger support.

Octa-Core Processor

9679 Chipset, A73*4, Quad Core CPU, G52 GPU for fast, smooth performance.

Android 14

Latest Android OS for a modern, secure, and intuitive experience.

8GB RAM

System memory for seamless multitasking and collaboration.

128GB Storage

System storage for apps, files, and multimedia content.

WiFi & Bluetooth

Built-in WiFi 802.11 a/b/g/n/ac/ax (2.4/5GHz) and Bluetooth 5.0 for wireless connectivity.

Wireless Screen Share

Effortless wireless screen sharing for collaboration across devices.

20W Dual Speakers

Powerful built-in speakers for immersive audio in classrooms and meetings.

OPS Slot & Expandable Storage

Reserved slot for OPS interface and optional internal storage expansion.

48MP Camera & 8 Array Mic (Optional)

Supports remote meetings and classroom recording with optional camera and mic.

Dual System Switching

Easy switching between Android and Windows for flexible use.

Technical Specifications

Display Parameters	Resolution: 3840 × 2160 (UHD) Aspect Ratio: 16:9 Contrast Ratio: 1200:1 / 4000:1 Colors: 1.07 billion colors Brightness: 350 cd/m² Viewing Angle: 178° Screen Surface: 4 mm thickness Anti-Glare glass
Panel Interactivity	Touch Technology: IR Touch Touch Points: 40-point (Windows 7/8/10), 20-point (Android) Touch Accuracy: ±1 mm (Windows) Recognition: Finger or passive stylus Response Rate: <4 ms (single touch), <10 ms (multi-touch) Response Distance: 2 mm Response Time: ≤8 ms Hotspot: Yes Bluetooth: V 5.0 WiFi: 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz
Back Side Connectivity (I/O Interface)	RJ45 ×2: yes RS232 ×1: yes VGA ×1: yes PC AUDIO IN ×1: yes TOUCH USB 2.0 ×2: yes OPTICAL OUT ×1: yes TF CARD ×1: yes (Mini) MIC IN ×1: yes (Mini) LINE OUT ×1: yes USB 3.0 ×1: yes USB 2.0 ×1: yes HDMI IN ×2: yes DP IN ×1: yes Type-C ×1: yes
Front Interface	USB 3.0 ×1: yes TOUCH USB 1 (USB2.0): yes HDMI IN 1 (HDMI 2.0): yes Type-C ×1: yes
Speaker	20W × 2
Operating System	Android Version: Android 14.0 Chipset: 9679 Chipset A73*4 CPU: Quad Core GPU: G52 RAM: 8 GB System Memory ROM: 128 GB System Storage Compliant With: Windows, Mac, Linux, Chrome OS
Physical & Electrical Specs	Gross Weight: 68 kg Bare Dimensions (mm): 1712 (L) × 996 (W) × 86 (H) Packing Dimensions (mm): 1820 (L) × 1120 (W) × 130 (H) Input Voltage: 100–240V (50/60Hz 4A) Power Consumption: Max 350W
Camera & Microphone	Camera: 48 Megapixels Mic: 8 Array Mic (Optional)
